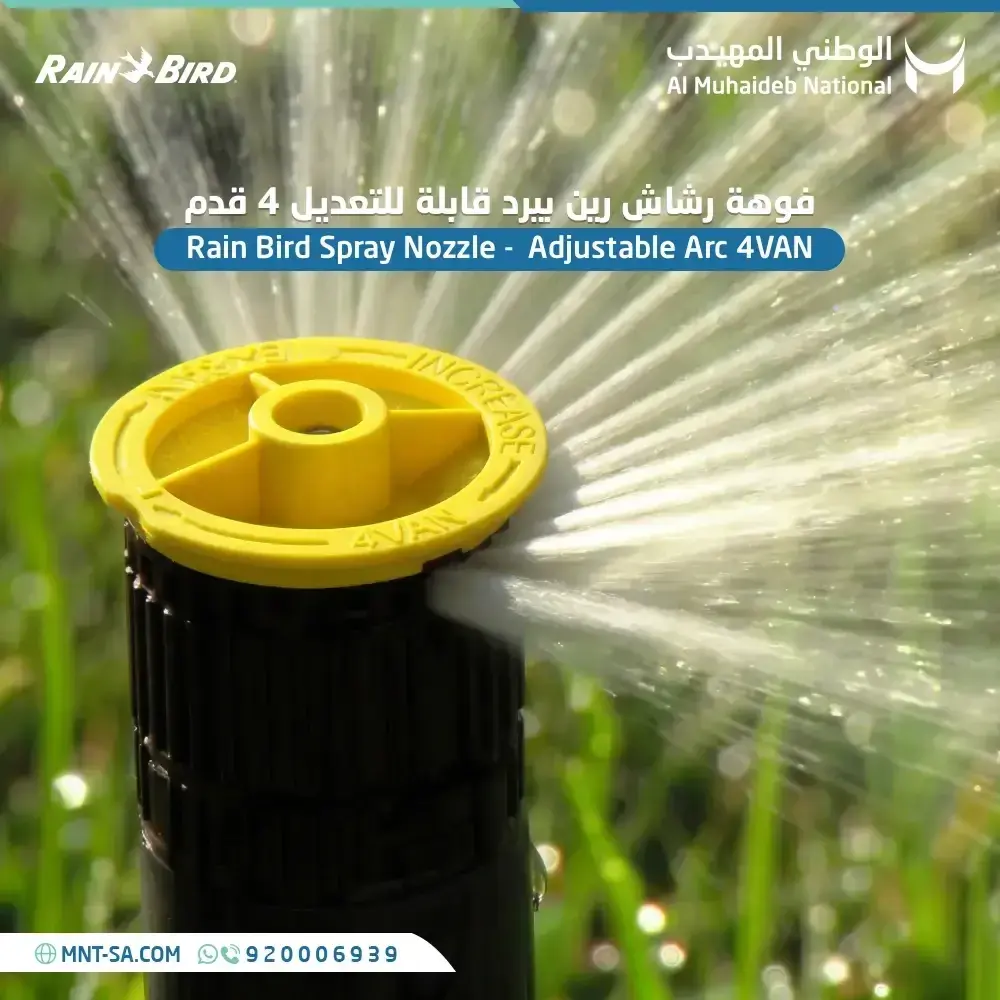

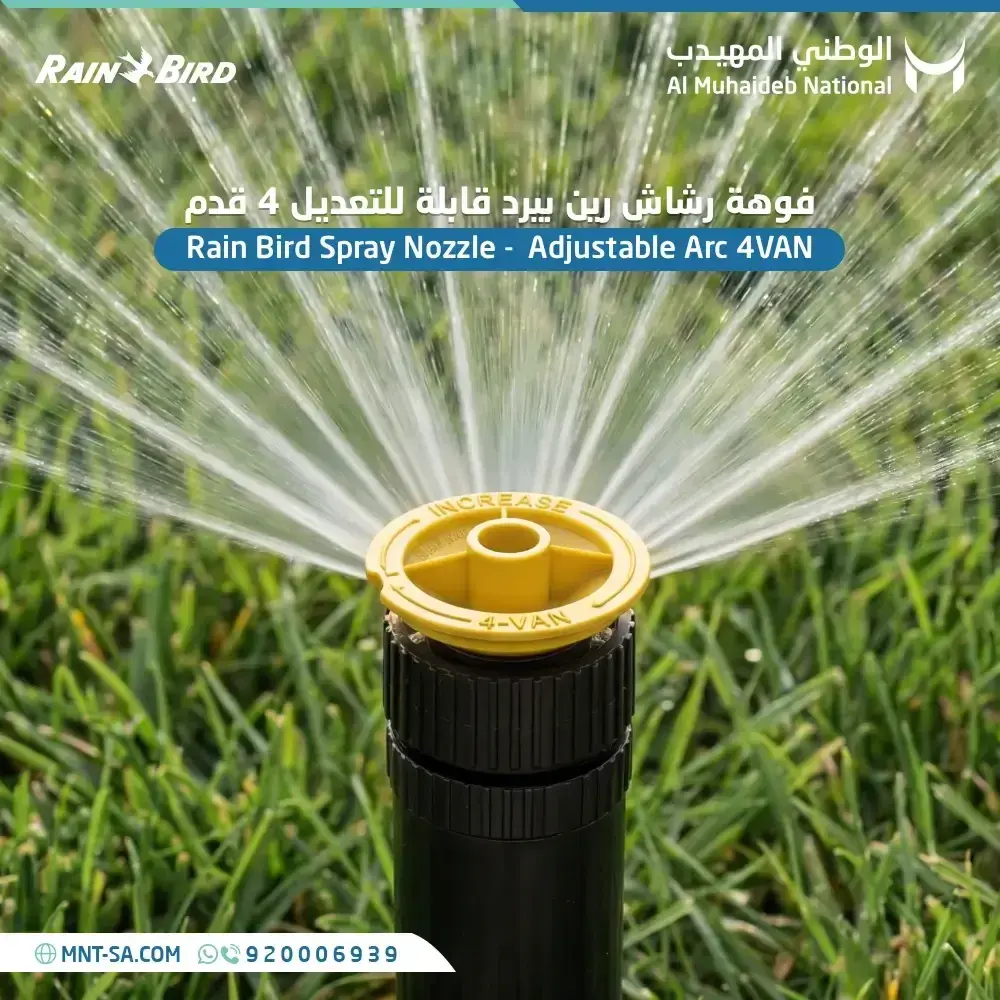

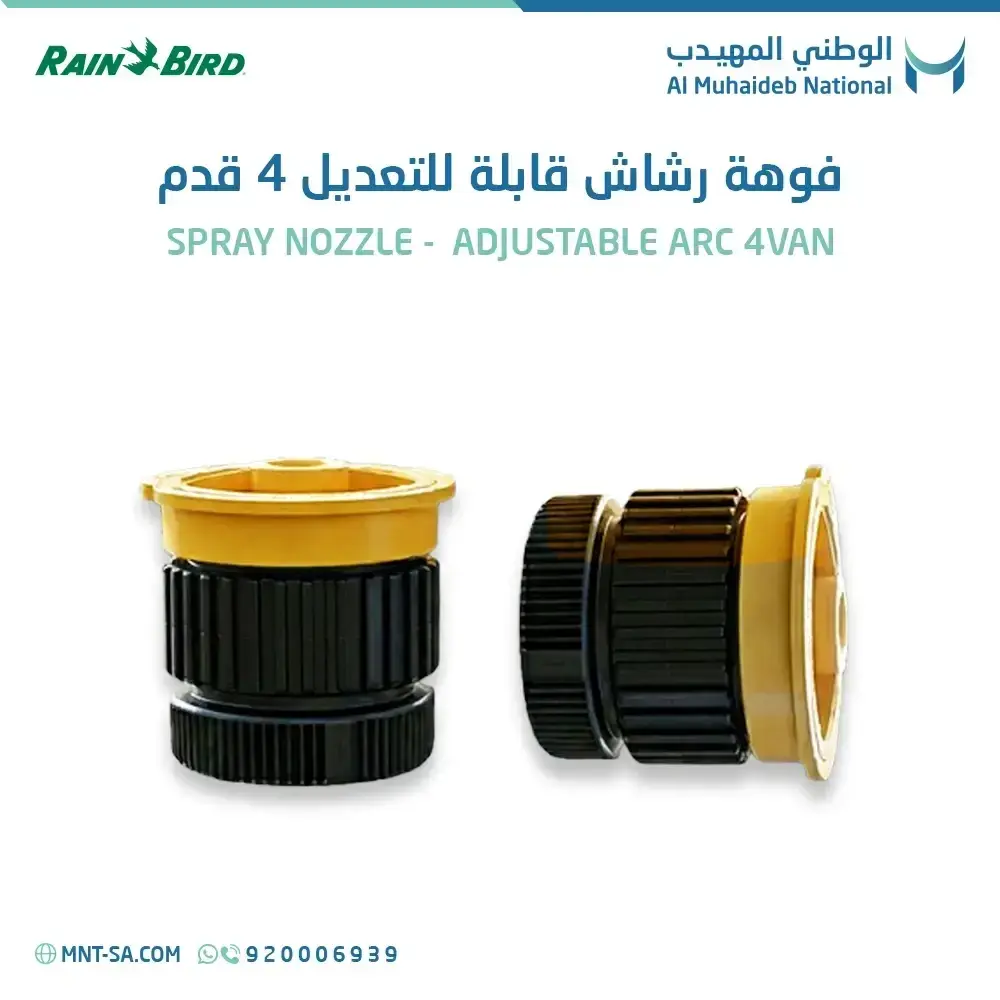

Rain Bird 4VAN Adjustable Arc Spray Nozzle — Spot Irrigation Precision for Your Garden's Smallest and Most Difficult Spaces
Every irrigation system, regardless of how well it is designed, produces blind spots. The single plant in the corner, the green space under one meter wide against a wall, the small bed enclosed by hard surfaces on three sides. A 6-foot nozzle does not solve these positions — because 6 feet is double what the space requires.
The Rain Bird 4VAN addresses these blind spots directly. A 4-foot radius (1.2 meters) covers micro-spaces with no water wasted beyond the target. Combined with full 0°–360° arc adjustability, the 4VAN adapts to any shape and any direction in the most confined installation positions. A complete irrigation system closes with the Rain Bird 4VAN at the positions that every other nozzle cannot reach.
Order now and complete your system's coverage.
Rain Bird 4VAN Adjustable Arc Spray Nozzle Technical Specifications
- Model: 4VAN
- Brand: Rain Bird — Exclusive Authorized Dealer: Al Watani Al Muhadeb
- Series: VAN — Variable Arc Nozzle
- Spray Pattern: Adjustable arc — Variable Arc
- Coverage Radius: 4 ft (approximately 1.2 m)
- Arc Adjustment Range: 0° to 360°
- Operating Pressure Range: 15–30 psi (1.0–2.1 bar)
- Optimum Operating Pressure: 30 psi (2.1 bar)
- Adjustment Screw Material: Stainless steel — corrosion resistant

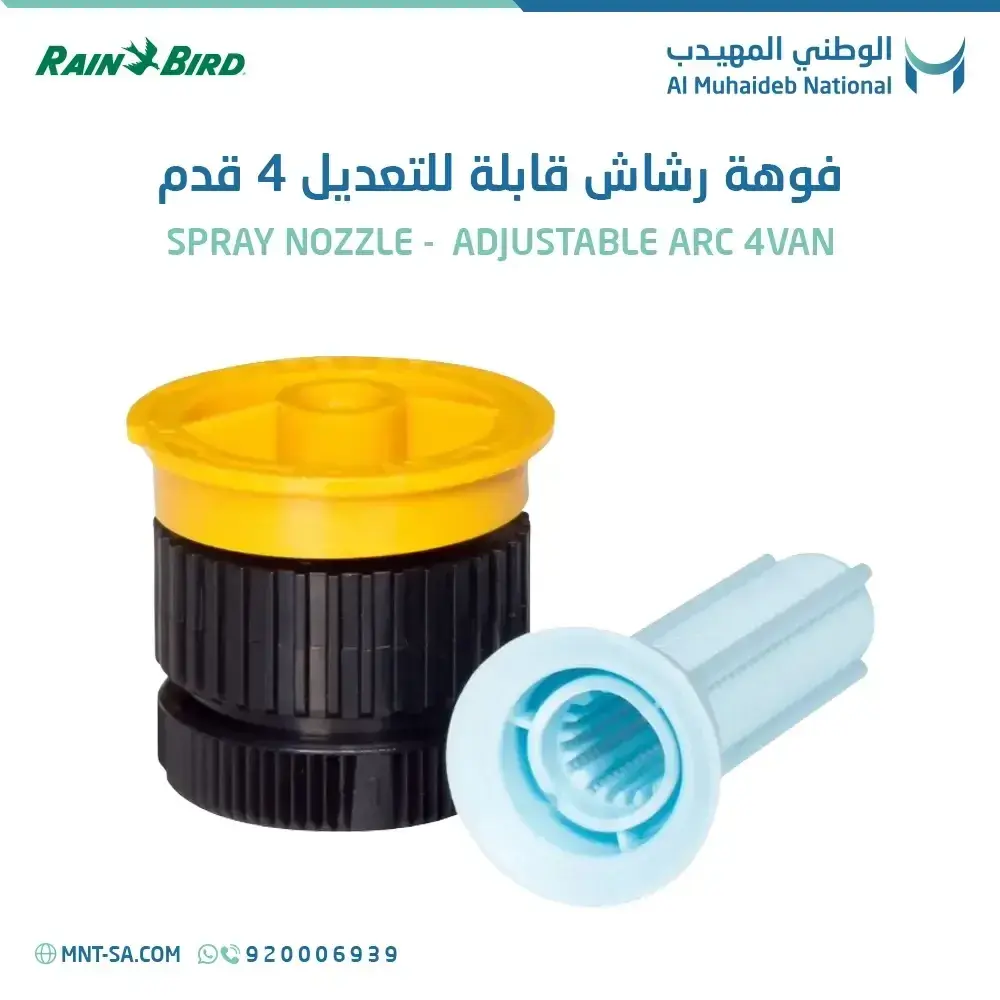

- Filter: Blue mesh screen 0.02" × 0.02" — included and required before activation
- Compatibility: All Rain Bird sprinklers and shrub adapters
- Precipitation Rate: Matched with Rain Bird MPR nozzles
- Dimensions: 2.24 × 2.24 × 5.46 cm
- Weight: 0.69 grams
- Color: Yellow
- Sales Unit: Multiples of 25 units
Rain Bird 4VAN Quality Certifications and Compliance
- Official Rain Bird certified product
- Matched Precipitation Rates with Rain Bird MPR nozzle series
- Compatible with professional irrigation system standards
- Exclusive authorized dealer in Saudi Arabia: Al Watani Al Muhadeb
Rain Bird 4VAN Adjustable Arc Spray Nozzle Features
The Smallest Radius in the VAN Series — The Minimum Achievable Precision
4 feet is the lower bound of the entire Rain Bird VAN series. In practical terms, this means every space under 1.2 meters in diameter that was previously impossible to irrigate with precision now has a solution. The Rain Bird 4VAN is that solution.
Yellow Color Code — Fastest Visual ID Across All Conditions
The vivid yellow body of the 4VAN is the easiest to spot in any system, especially in the confined and low-visibility positions where this nozzle is typically installed. During inspection or maintenance, yellow positions identify themselves immediately — critical when the locations are the hardest to access.
Arc Adjustment from 0° to 360° — Maximum Flexibility in Minimum Space
In a space under one square meter, every additional degree of spray means wetting a surface that should stay dry. The ability to set the exact required arc by hand without tools turns this challenge into a manageable installation step.
Textured Grip — Control in the Most Confined Positions
The 4VAN is installed in the tightest positions in the garden — between plants, in acute corners, behind hardscape elements. The textured grip maintains full control in these positions regardless of access angle or moisture conditions.
Captured Screw Slot — Precision Without Collateral Risk
The protected screw slot keeps the screwdriver secure during radius and flow adjustment even in the tightest installation angles — ensuring calibrated tuning without risk of tool slippage damaging the nozzle or surrounding elements.
Stainless Steel Screw — Stable Settings in High-Moisture Micro-Zones
The confined positions where 4VAN is typically installed tend to accumulate moisture more than open areas. The stainless steel adjustment screw maintains the calibrated setting across seasons regardless of persistent surrounding moisture.
Blue Mesh Filter — Most Critical at This Scale
The 4VAN has the smallest spray orifice in the entire VAN series. Without the included filter, clogging is not a possibility — it is a timeline. The included filter is what converts the 4VAN from a theoretically precise tool into a reliably performing one in real-world conditions.
Matched Precipitation Rates — Integration Without Distribution Disruption
Despite its small radius, the Rain Bird 4VAN integrates into any mixed-nozzle system with matched precipitation rates — ensuring that micro-zone positions receive proportionally consistent moisture relative to larger-radius zones in the same system.
Rain Bird 4VAN Adjustable Arc Spray Nozzle Use Cases
Isolated Individual Plant Irrigation
A single ornamental shrub in a garden corner, a recently transplanted specimen, or a decorative plant in a specific location — the Rain Bird 4VAN delivers spot irrigation directly to the root zone without affecting surrounding areas.
Acute Corners Between Two Hard Surfaces
Where two walls meet, or a wall intersects with another hard element, a narrow green space typically exists in the corner that no larger nozzle can reach without spraying both surfaces. The Rain Bird 4VAN reaches this corner precisely.
Sub-Meter Green Strips
The green strip 60–90 cm wide between a paving tile and a wall — this specific dimension is the exclusive territory of the 4VAN. Any other nozzle in the VAN series would overshoot this width in both directions.
Balcony and Rooftop Garden Irrigation
On balconies and open rooftops with large container plants or small raised beds, the Rain Bird 4VAN provides targeted spot irrigation for each vessel without wetting the surrounding floor surface.
Addressing Persistent Dry Spots at Season's End
An end-of-season irrigation audit typically reveals specific positions that consistently underperform despite the system running normally. These positions — usually at coverage zone edges or behind hardscape elements — are exactly where a precision 4VAN installation resolves the problem without infrastructure changes.
Establishment Phase Support for New Plantings
Newly planted specimens require concentrated root-zone irrigation rather than broad coverage. The Rain Bird 4VAN provides this targeting precision during the establishment phase until the root system develops sufficiently to benefit from a larger radius.
How to Install the Rain Bird 4VAN Adjustable Arc Spray Nozzle — Step-by-Step
Step 1 — Shut Off the Water Supply Deactivate the irrigation system before handling any sprinkler or nozzle component.
Step 2 — Inspect and Clean the Nozzle Seat Thoroughly In the confined positions where 4VAN is typically installed, sediment accumulation in the nozzle seat is more common. Clean the seat completely before installing the Rain Bird 4VAN.
Step 3 — Install the Filter Screen First This step is not optional for the 4VAN. The smallest orifice in the VAN series makes the included filter a functional requirement, not an optional precaution.
Step 4 — Thread in the Rain Bird 4VAN by Hand Rotate clockwise until secure. In confined positions, verify the nozzle is aligned with the sprinkler axis before final tightening.
Step 5 — Orient the Fixed Left Edge Indicator Position the Rain Bird 4VAN so the left edge indicator faces the defined left boundary of the target area.
Step 6 — Set the Arc Cautiously In spaces under one square meter, begin with the minimum arc and expand incrementally. Correction after over-spray wets surfaces that should not be wet is harder than starting conservatively.
Step 7 — Calibrate Radius to the Actual Target Dimension Use a screwdriver in the captured slot to adjust the stainless steel screw until the radius matches the actual dimensions of the target zone — not the maximum 4-foot output.
Step 8 — Activate and Observe from Multiple Angles Open the water supply slowly. On the first activation of a 4VAN installation, observe the spray pattern from multiple angles to confirm no overspray in any direction before finalizing the setting.
Tips for Best Performance from the Rain Bird 4VAN Adjustable Arc Spray Nozzle
- Inspect the 4VAN filter every 6 weeks during active irrigation seasons — the smallest orifice in the series requires more frequent attention than any other VAN model.
- Use the 4VAN during plant establishment phases, then consider replacing with a larger radius once the root system has developed — this staged approach optimizes water delivery at each growth phase.
- In positions adjacent to walls, calibrate the arc to leave a 15–20 cm buffer from the wall surface to prevent moisture accumulation on the external facade.
- Mark 4VAN positions on your system documentation with a specific annotation — these small yellow nodes are most likely to be overlooked during routine maintenance checks.
- If a 4VAN position shows reduced output after a period of operation, check the filter before any other intervention — partial clogging is the most common cause of flow reduction at this radius.
How to Order the Rain Bird 4VAN Adjustable Arc Spray Nozzle
- Sold in multiples of 25 units — verify the order quantity is a correct multiple of 25 before checkout.
- Add the Rain Bird 4VAN directly to your cart from this page.
- Select payment method, enter delivery address, and complete the order.
- Confirmation and tracking number sent immediately after order placement.
- For large landscape project quantities, contact the sales team directly.
Important Notes Before Using the Rain Bird 4VAN Adjustable Arc Spray Nozzle
- Sold in multiples of 25 units only — orders with non-compliant quantities will not be processed.
- The included blue mesh filter screen is mandatory before first activation — this is non-negotiable for the 4VAN given its orifice size.
- Maximum operating pressure is 30 psi — in enclosed positions, excess pressure can extend spray unpredictably beyond the intended target.
- Arc collar adjustment by hand only — the risk of cracking at the adjustment mechanism is higher in the smallest nozzle in the series if force tools are applied.
Shipping and Delivery — Al Watani Al Muhadeb
- Fast delivery to all regions of Saudi Arabia — 2–5 business days.
- Secure packaging ensures Rain Bird 4VAN nozzles arrive undamaged.
- Tracking number sent after order confirmation.
Why the Rain Bird 4VAN Adjustable Arc Spray Nozzle Is Worth the Investment
Permanently Eliminates Irrigation Blind Spots Every system has positions that larger nozzles cannot serve without waste. The Rain Bird 4VAN resolves these positions with minimal intervention and no infrastructure changes.
Near-Total Water Use Efficiency at Micro Scale At 4 feet, virtually every drop of water delivered reaches the target plant. No other nozzle in the VAN series achieves this efficiency level for spaces under 1.2 meters.
A Permanent Tool, Not a Temporary Fix Some garden positions will always need a 4-foot radius. The 4VAN serves these points season after season — it is not a workaround, it is the correct specification for the space.
Completes the System Without Changing It Installing a 4VAN at a blind spot position requires no changes to existing infrastructure — direct replacement in any existing Rain Bird sprinkler body.
Why Buy Your Spray Nozzle from Al Watani Al Muhadeb?
- Exclusive authorized Rain Bird dealer in the Kingdom of Saudi Arabia.
- 100% genuine Rain Bird products with official warranty coverage.
- Expert irrigation systems technical support team.
- Fast delivery to all regions of the Kingdom.
- Consistent stock of all Rain Bird products and accessories.
- Competitive pricing as the official authorized dealer.
Complete Your System's Coverage with the Rain Bird 4VAN Adjustable Arc Spray Nozzle Today
A complete irrigation system means every plant in every corner gets what it needs — not just the ones in easily-served open areas. The Rain Bird 4VAN closes the gaps that every other nozzle in your system leaves behind, with the smallest possible footprint and the highest available precision at this scale.
Order now from Al Watani Al Muhadeb, the exclusive authorized Rain Bird dealer in Saudi Arabia.
Add to Cart Now and Get Fast Delivery to Your Door.
Frequently Asked Questions — Rain Bird 4VAN Adjustable Arc Spray Nozzle
Can the Rain Bird 4VAN be used with shrub adapters in raised planting beds?
Yes. The 4VAN is fully compatible with all Rain Bird shrub adapters, making it a practical choice for raised beds and large container plants where a fixed-height riser positions the nozzle above the planting medium and close-range spot irrigation is required.
How long does a 4VAN take to deliver the required water volume to a single plant?
This depends on the flow rate setting and the specific water requirements of the target plant. The Rain Bird 4VAN allows flow rate calibration via the stainless steel adjustment screw — set the output to match the plant's daily water requirement and your system's programmed cycle duration.
Is the 4VAN suitable as a temporary irrigation tool during new planting phases?
Yes — this is one of the 4VAN's most effective applications. Newly planted specimens require root-zone-concentrated irrigation rather than broad coverage. The 4VAN delivers this precision during the establishment phase. Once the root system has developed, transitioning to a larger radius nozzle at that position is straightforward.
What is the practical difference between using a 4VAN and reducing a 6VAN to its minimum radius?
Even at its minimum radius setting, the 6VAN's flow rate is calibrated for a 6-foot coverage area and may not be appropriate for a space under 1.2 meters. The Rain Bird 4VAN is factory-calibrated for a 4-foot radius — both the flow rate and the spray pattern are designed for this specific scale, not reduced from a larger specification.
Does the Rain Bird 4VAN work in smart or automated irrigation systems?
Yes. The 4VAN is a mechanical nozzle compatible with any irrigation system regardless of controller type. It installs in the sprinkler body like any other VAN nozzle and operates automatically according to the controller's programmed schedule.
Can the included filter screen be replaced separately if it becomes permanently clogged?
Yes. Replacement filter screens are available from Al Watani Al Muhadeb as separate service parts. When complete clogging occurs, replacement is recommended over intensive cleaning, which can alter the mesh dimensions and affect filtration accuracy.
How do I verify that a 4VAN position does not create a dry zone between it and adjacent larger-radius nozzles?
In a mixed-radius system, confirm that the spacing between the 4VAN and any adjacent sprinkler does not exceed 80% of the combined radii (head-to-head coverage principle). Spacing beyond this threshold will produce a dry band between the two positions regardless of nozzle size.
Is 4 feet the smallest radius available in Rain Bird spray nozzles?
The Rain Bird 4VAN is the smallest radius in the Rain Bird VAN series. For areas smaller than 1.2 meters in diameter, the appropriate solution typically shifts to drip irrigation systems, which operate on a fundamentally different delivery principle optimized for sub-meter micro-zones.
