Rain Bird 15VAN Adjustable Arc Spray Nozzle — Perfect Coverage for Medium Areas with Unmatched Precision
Working with medium-sized green areas of irregular shapes where fixed-arc nozzles consistently leave gaps or produce wasteful overspray? Need controlled coverage at a radius that matches your actual space — not larger?
The Rain Bird 15VAN Adjustable Arc Spray Nozzle is built for exactly this. It delivers a controlled 15-foot radius with full arc adjustability from 0° to 360° without special tools, a stainless steel adjustment screw for precise flow and radius tuning, and matched precipitation rates with Rain Bird MPR nozzles for balanced zone performance. Compatible with all Rain Bird sprinkler heads and shrub adapters as a direct drop-in replacement.
Built for professionals. Right-sized for residential use. Order now.
Rain Bird 15VAN Adjustable Arc Spray Nozzle Technical Specifications
- Model: 15VAN
- Brand: Rain Bird — Exclusive Authorized Dealer: Al Watani Al Muhadeb
- Series: VAN — Variable Arc Nozzle
- Spray Pattern: Adjustable arc — Variable Arc
- Coverage Radius: 15 ft (approximately 4.6 m)
- Arc Adjustment Range: 0° to 360°
- Operating Pressure Range: 15–30 psi (1.0–2.1 bar)
- Optimum Operating Pressure: 30 psi (2.1 bar)
- Adjustment Screw Material: Stainless steel — corrosion resistant
- Filter: Blue mesh screen 0.02" × 0.02" — prevents clogging and maintains radius accuracy
- Compatibility: All Rain Bird sprinklers and shrub adapters
- Precipitation Rate: Matched with Rain Bird MPR nozzles

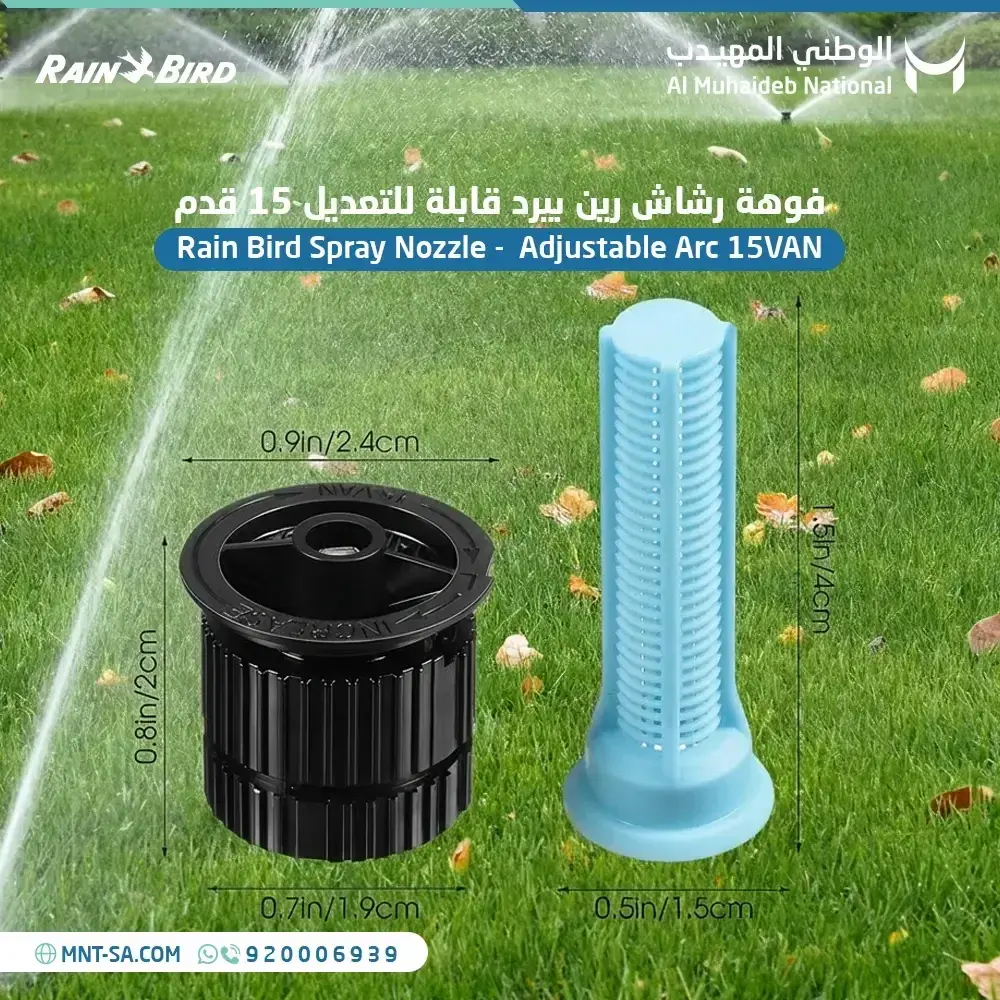

- Dimensions: 2.24 × 2.24 × 5.46 cm
- Weight: 0.69 grams
- Color: Black
- Sales Unit: Multiples of 25 units
Rain Bird 15VAN Quality Certifications and Compliance
- Official Rain Bird certified product
- Matched Precipitation Rates (MPR) with Rain Bird MPR nozzle series
- Compatible with professional irrigation system standards
- Exclusive authorized dealer in Saudi Arabia: Al Watani Al Muhadeb
Rain Bird 15VAN Adjustable Arc Spray Nozzle Features
15-Foot Controlled Coverage — Precision Matched to Medium-Scale Areas
The 15-foot radius of the Rain Bird 15VAN delivers the right coverage for medium-sized irrigation zones where an 18-foot or larger nozzle would create unwanted overlap or boundary overspray. Accurate irrigation starts with selecting the correct radius for the actual space.
Arc Adjustment from 0° to 360° — No Tools Required
A simple twist of the center collar on the Rain Bird 15VAN changes the spray arc smoothly from zero to a full circle. No additional tools, no complicated process — immediate field adjustment at any installation point.
Textured Base and Collar for a Secure Grip in Wet Conditions
The base and collar of the Rain Bird 15VAN Adjustable Arc Spray Nozzle are textured for a confident grip even with wet hands, reducing installation time and preventing slippage during field adjustments.
Physical Left Edge Indicator — Accurate Arc Direction by Touch
The left edge indicator on the 15VAN allows you to identify the fixed left boundary of the spray pattern by feel, enabling fast and accurate directional alignment even when the nozzle is installed in a position with limited direct visibility.
Captured Screw Slot — Eliminates Screwdriver Slippage
The protected screw slot on the Rain Bird 15VAN holds the screwdriver securely during flow and radius adjustments, protecting the nozzle surface from damage and ensuring controlled, precise tuning with every adjustment.
Stainless Steel Adjustment Screw — Full Flow and Radius Control
The stainless steel screw in the Rain Bird 15VAN Adjustable Arc Spray Nozzle allows precise adjustment of both flow rate and spray radius, with complete corrosion resistance for reliable year-round performance in outdoor irrigation environments.
Blue Mesh Filter Screen — Protects Performance and Maintains Radius Accuracy
The included blue filter screen (0.02" × 0.02") in the 15VAN blocks fine particles and prevents nozzle clogging, ensuring the calibrated spray radius is maintained accurately across every watering cycle throughout the season.
Matched Precipitation Rates with Rain Bird MPR Nozzles
The Rain Bird 15VAN can be installed in mixed-nozzle zones alongside fixed-arc MPR nozzles without disrupting water distribution balance, enabling well-engineered, uniform irrigation systems with consistent soil moisture levels.
Universal Compatibility with All Rain Bird Sprinklers and Shrub Adapters
The Rain Bird 15VAN Adjustable Arc Spray Nozzle is compatible with all Rain Bird Pop-up sprinklers and shrub adapters, functioning as a direct replacement for any existing nozzle position without additional modifications.
Rain Bird 15VAN Adjustable Arc Spray Nozzle Use Cases
Watering Medium-Sized Turf Areas with Defined Boundaries
The 15-foot radius of the Rain Bird 15VAN provides the correct coverage for medium turf zones without the overlap and boundary overspray caused by larger-radius nozzles in tightly bounded areas.
Tight Corners Adjacent to Walls and Fences
The Rain Bird 15VAN's adjustable arc allows setting a partial spray pattern suited for corners bounded by walls or fences, ensuring the green area is watered without redirecting spray onto adjacent structures.
Flower Beds and Shrubs in Limited-Space Planting Areas
The 15VAN delivers a soft, controlled spray pattern well suited for ornamental plants, flower beds, and shrubs in smaller planting areas that require targeted, low-impact irrigation.
Narrow Green Strips Along Driveways and Internal Pathways
Calibrating the 15VAN radius to the actual width of a narrow green strip eliminates overspray onto asphalt or paving surfaces, delivering high water efficiency in constrained spaces.
Mixed-Radius Irrigation Systems
The Rain Bird 15VAN Adjustable Arc Spray Nozzle can be deployed alongside 18VAN or MPR fixed-arc nozzles in integrated irrigation projects requiring varied radius coverage while maintaining uniform precipitation rates throughout the zone.
Precision Upgrades at Specific Points in Existing Systems
When individual sprinkler positions require a smaller, more precise radius, the 15VAN functions as a direct replacement that improves zone efficiency without requiring changes to the sprinkler head or underground infrastructure.
How to Install the Rain Bird 15VAN Adjustable Arc Spray Nozzle — Step-by-Step
Step 1 — Shut Off the Water Supply Deactivate the irrigation controller or close the main water valve before beginning installation of the Rain Bird 15VAN.
Step 2 — Remove the Existing Nozzle Unscrew the current nozzle from the sprinkler body counter-clockwise. Clean the nozzle seat of any mineral deposits or debris before proceeding.
Step 3 — Install the Blue Mesh Filter Screen Confirm the included blue filter screen is properly seated in the nozzle mount before installing the Rain Bird 15VAN.
Step 4 — Thread in the Rain Bird 15VAN Rotate the 15VAN clockwise into the sprinkler body until secure. Avoid overtightening to prevent thread damage.
Step 5 — Set the Fixed Left Edge Direction Orient the Rain Bird 15VAN so that the left edge indicator faces the left boundary of the target irrigation area.
Step 6 — Adjust the Arc Setting Twist the center collar of the 15VAN to reach the desired spray arc between 0° and 360°.
Step 7 — Adjust Flow and Radius Using a screwdriver in the captured screw slot on top of the Rain Bird 15VAN, turn the stainless steel screw to fine-tune the flow rate and spray radius to the required output for the specific zone.
Step 8 — Restore Water Supply and Verify Performance Open the water source slowly and observe the 15VAN spray pattern. Confirm full coverage of the target area without boundary overspray. Adjust as needed.
Tips for Best Performance from the Rain Bird 15VAN Adjustable Arc Spray Nozzle
- Operate the system at the optimum pressure of 30 psi to achieve the Rain Bird 15VAN's best water distribution pattern and most consistent radius output.
- Clean the blue mesh filter screen in the 15VAN at the start of each irrigation season to prevent sediment accumulation from reducing flow.
- When installing Rain Bird 15VAN nozzles in zones that also include MPR fixed-arc nozzles, confirm that the radius settings are matched for uniform soil moisture across the entire zone.
- Revisit the arc setting on each 15VAN following any changes to landscape design or the addition of new elements that alter the boundaries of the irrigated area.
- Store spare Rain Bird 15VAN nozzles away from direct high heat to preserve the black plastic components and filter screen condition.
- Visually verify after each arc or radius adjustment that the 15VAN spray pattern does not encroach on adjacent sidewalks, driveways, walls, or structures.
How to Order the Rain Bird 15VAN Adjustable Arc Spray Nozzle
- The Rain Bird 15VAN is sold in multiples of 25 units — confirm your order quantity is a multiple of 25 before placing the order.
- Add the Rain Bird 15VAN Adjustable Arc Spray Nozzle to your cart directly from this page.
- Select your preferred payment method: credit card, bank transfer, or cash on delivery (availability varies by region).
- Enter your delivery address and complete the order.
- A confirmation with a shipment tracking number will be sent immediately after the 15VAN order is placed.
- For institutional or large-volume orders, contact the sales team directly.
Order the Rain Bird 15VAN Adjustable Arc Spray Nozzle now and receive your order at your door within the specified delivery window.
Important Notes Before Using the Rain Bird 15VAN Adjustable Arc Spray Nozzle
- The Rain Bird 15VAN is sold in multiples of 25 units — ensure the order quantity is a correct multiple of 25 before completing the purchase.
- The blue mesh filter screen is included with the 15VAN — installing it before system activation is required to ensure optimal nozzle performance.
- Operating pressure for the Rain Bird 15VAN must not exceed 30 psi — excess pressure distorts the spray pattern and compromises radius accuracy.
- Avoid installing the 15VAN in non-Rain Bird sprinkler bodies without first confirming nozzle seat dimension compatibility.
- Always adjust the arc collar on the Rain Bird 15VAN by hand — never force it with tools to preserve the internal adjustment mechanism.
Shipping and Delivery — Al Watani Al Muhadeb
- Fast delivery of Rain Bird 15VAN nozzles to all regions of the Kingdom of Saudi Arabia.
- Standard delivery time: 2–5 business days depending on destination region.
- Secure packaging ensures Rain Bird 15VAN nozzles arrive in perfect condition.
- Track your shipment via the tracking number provided after order confirmation.
- For inquiries about an existing order, contact customer service during official business hours.
Why the Rain Bird 15VAN Adjustable Arc Spray Nozzle Is Worth the Investment
15-Foot Radius — The Right Size for Your Space Choosing a radius that matches the actual irrigation area eliminates the overlap and waste caused by oversized nozzles. The Rain Bird 15VAN delivers precisely calibrated coverage for medium zones where larger nozzles overshoot.
Arc Flexibility Turns Every Difficult Corner into a Controlled Zone Instead of accepting poor coverage in irregular areas, the Rain Bird 15VAN converts any geometrically complex space into a well-managed irrigation zone with a single adjustment.
Tool-Free Setup Reduces Field Installation Time The hand-adjustment design of the 15VAN means installation and arc tuning are completed at the site quickly and without a tool kit.
Black Finish — Natural Visual Integration in Garden Environments The black color of the Rain Bird 15VAN blends naturally with garden soil and planted areas, minimizing the visual impact of sprinkler hardware in landscaped spaces.
Full System Compatibility Protects Your Existing Investment The Rain Bird 15VAN works with your complete existing Rain Bird system — no sprinkler head replacements, no underground modifications required.
Stainless Steel Screw — Consistent Precision Across Seasons Corrosion resistance in the adjustment screw ensures the Rain Bird 15VAN maintains its calibrated output season after season without degradation.
Why Buy Your Spray Nozzle from Al Watani Al Muhadeb?
- Exclusive authorized Rain Bird dealer in the Kingdom of Saudi Arabia (retail sales).
- 100% genuine Rain Bird products with official warranty coverage.
- Specialized technical support from an expert irrigation systems team.
- Fast delivery to all regions of the Kingdom.
- Consistent stock of all Rain Bird products and accessories.
- Competitive pricing guaranteed through authorized dealer status.
- Customer service available during business hours for all Rain Bird 15VAN inquiries.
Start More Precise Watering with the Rain Bird 15VAN Adjustable Arc Spray Nozzle Today
The Rain Bird 15VAN Adjustable Arc Spray Nozzle is the professional tool that puts you in complete control of coverage pattern, arc angle, and flow rate at every irrigation point in your landscape. A calibrated 15-foot radius, fully adjustable arc, and matched precipitation rates — precision that fixed-arc nozzles simply cannot deliver.
Order now from Al Watani Al Muhadeb, the exclusive authorized Rain Bird dealer in Saudi Arabia, and receive your Rain Bird 15VAN nozzles quickly and securely.
Add to Cart Now and Get Fast Delivery to Your Door.
Frequently Asked Questions — Rain Bird 15VAN Adjustable Arc Spray Nozzle
What is the practical decision rule for choosing between the 15VAN and 18VAN?
The rule: the nozzle radius should equal the distance from the sprinkler to the farthest boundary of the target zone. If that distance is 15 feet or less, use the 15VAN. If it reaches 18 feet, use the 18VAN. The most common mistake is selecting a larger nozzle "for safety" — this creates overlap and water waste, not better coverage.
How far can the 15VAN radius be reduced before distribution quality is affected?
The 15VAN radius can be reduced to approximately 12 feet without noticeable impact on distribution quality. Below 12 feet, using a 12VAN nozzle directly is preferable — a nozzle factory-calibrated to the required radius always delivers better distribution than one reduced from a larger specification.
How does the 15VAN handle an irrigation zone where shrubs obstruct the spray path?
Shrubs taller than the sprinkler height create dry shadows behind them. The solution is raising the sprinkler height using a shrub adapter above the tallest shrub in the zone, or adding a supplemental irrigation point on the far side of dense shrubs to eliminate the shadow zone.
Does the 15VAN require a separate pressure regulator when system pressure is high?
If system pressure consistently exceeds 35 psi, a pressure regulator at the sprinkler protects the 15VAN and prevents misting — a condition where water atomizes and evaporates before reaching the soil. Excess pressure increases water consumption while reducing actual irrigation efficiency.
How do slopes affect 15VAN performance and what is the recommended approach?
On slopes exceeding 5%, water accumulates at the base while the upper section remains underwatered. Apply a Cycle and Soak approach: split each irrigation cycle into 3–4 short runs rather than one long session. This allows soil absorption between runs and prevents surface runoff from concentrating at the slope base.
