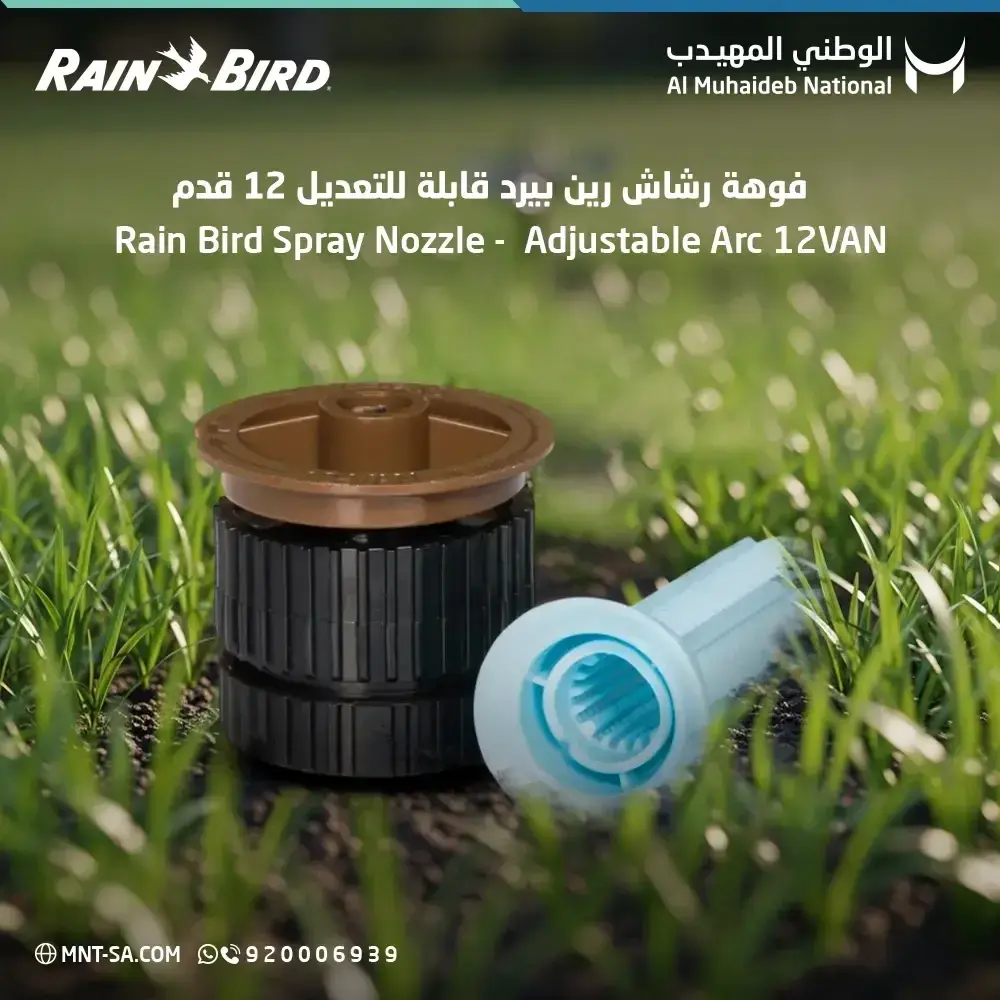

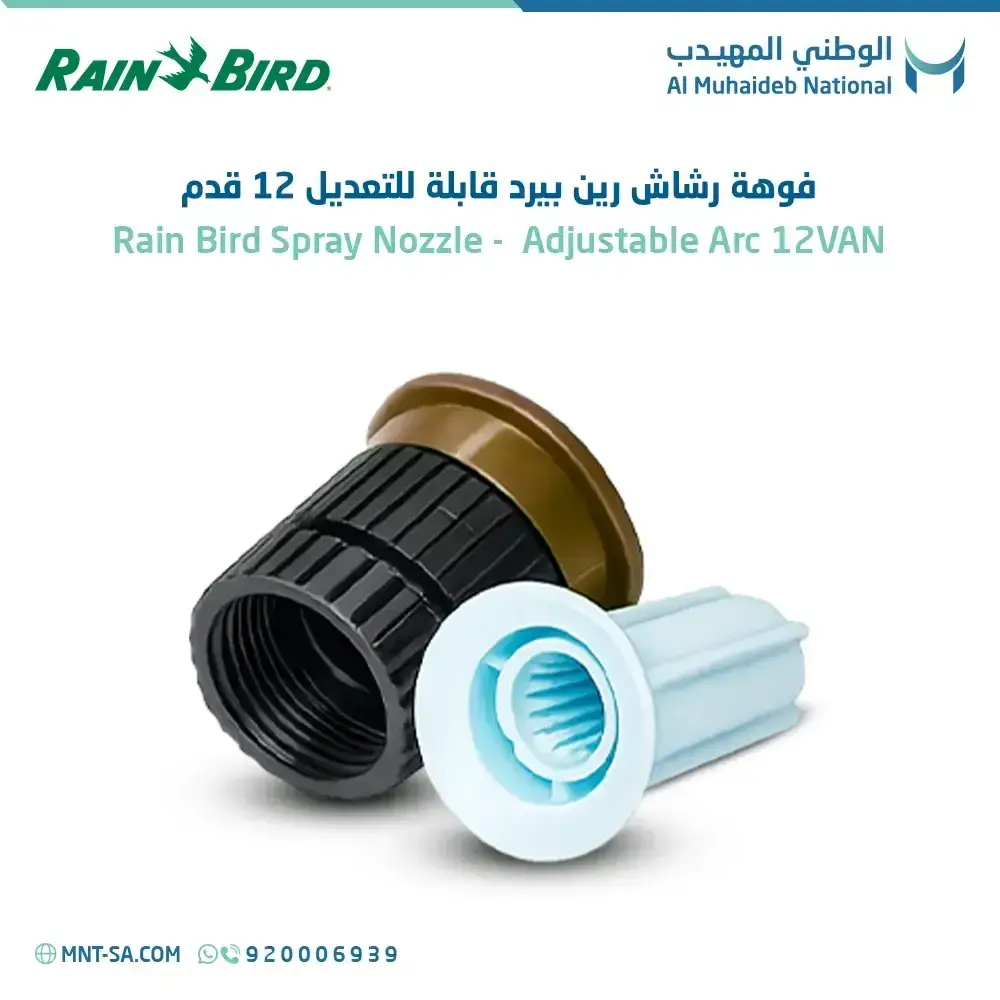

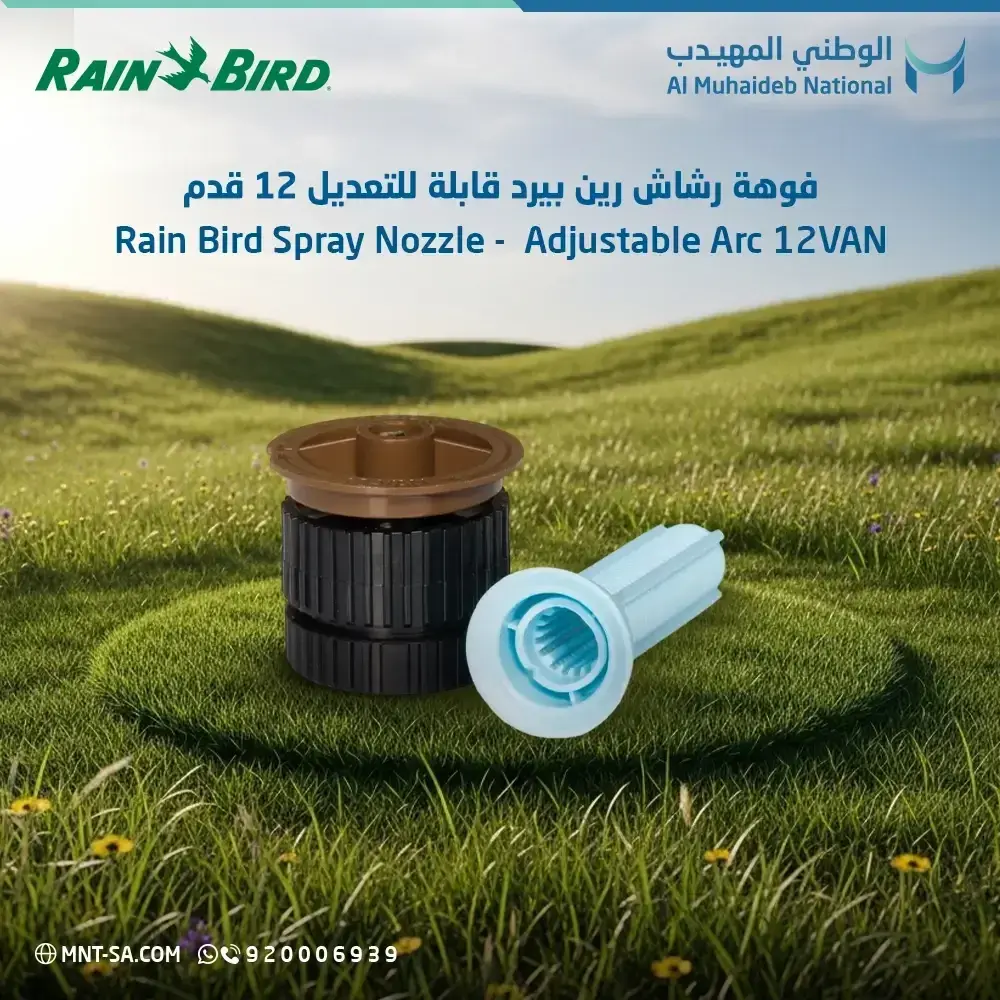

Rain Bird 12VAN Adjustable Arc Spray Nozzle — The Bridge Radius That Closes Coverage Gaps in Multi-Zone Systems
Finding that a 15-foot nozzle overshoots your space and a 10-foot nozzle leaves the outer edges dry? This coverage gap is exactly the engineering challenge the Rain Bird 12VAN was designed to solve.
At a 12-foot radius (approximately 3.6 meters), the 12VAN occupies the critical mid-range position that reduces zone overlap, eliminates dry spots at coverage boundaries, and gives irrigation designers the intermediate spacing option needed for precise head-to-head coverage layouts. The Rain Bird 12VAN is the professional choice for every position where standard radius options fall short.
Precision starts with choosing the right radius. Order now.
Rain Bird 12VAN Adjustable Arc Spray Nozzle Technical Specifications
- Model: 12VAN
- Brand: Rain Bird — Exclusive Authorized Dealer: Al Watani Al Muhadeb
- Series: VAN — Variable Arc Nozzle
- Spray Pattern: Adjustable arc — Variable Arc
- Coverage Radius: 12 ft (approximately 3.6 m)

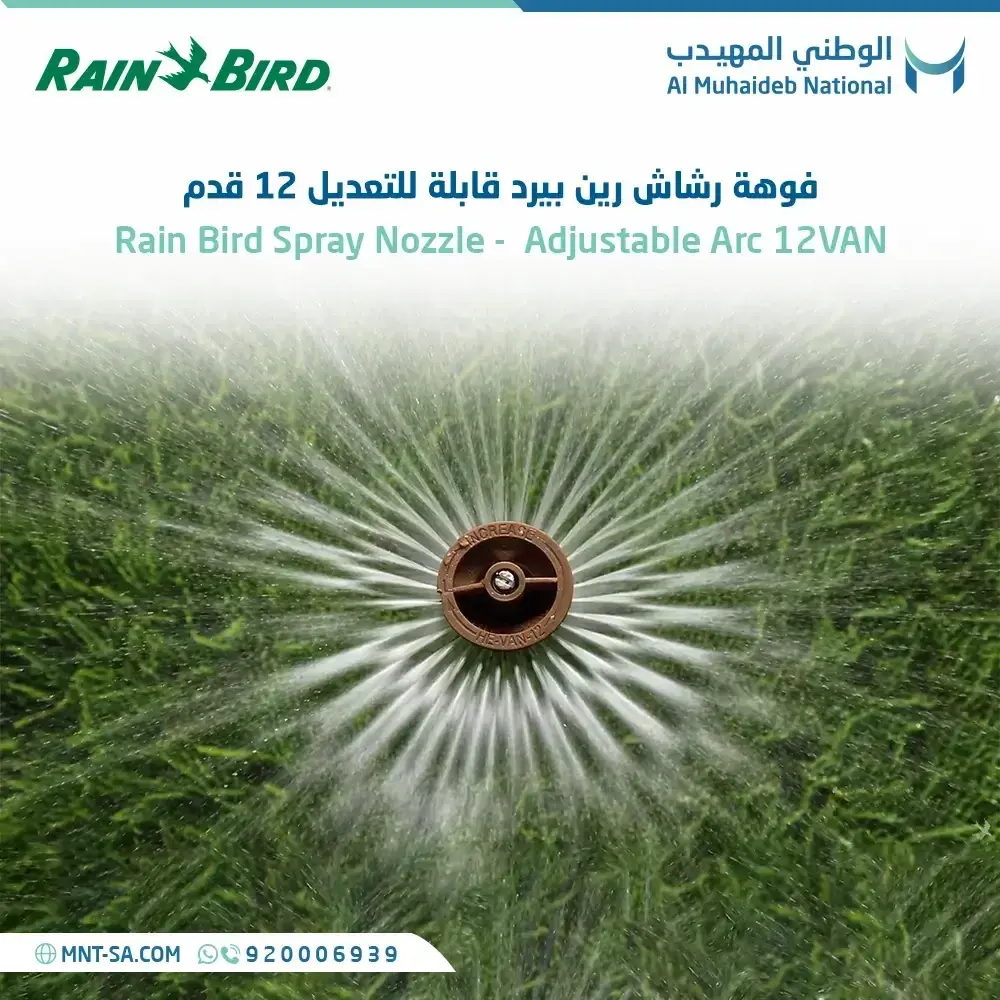

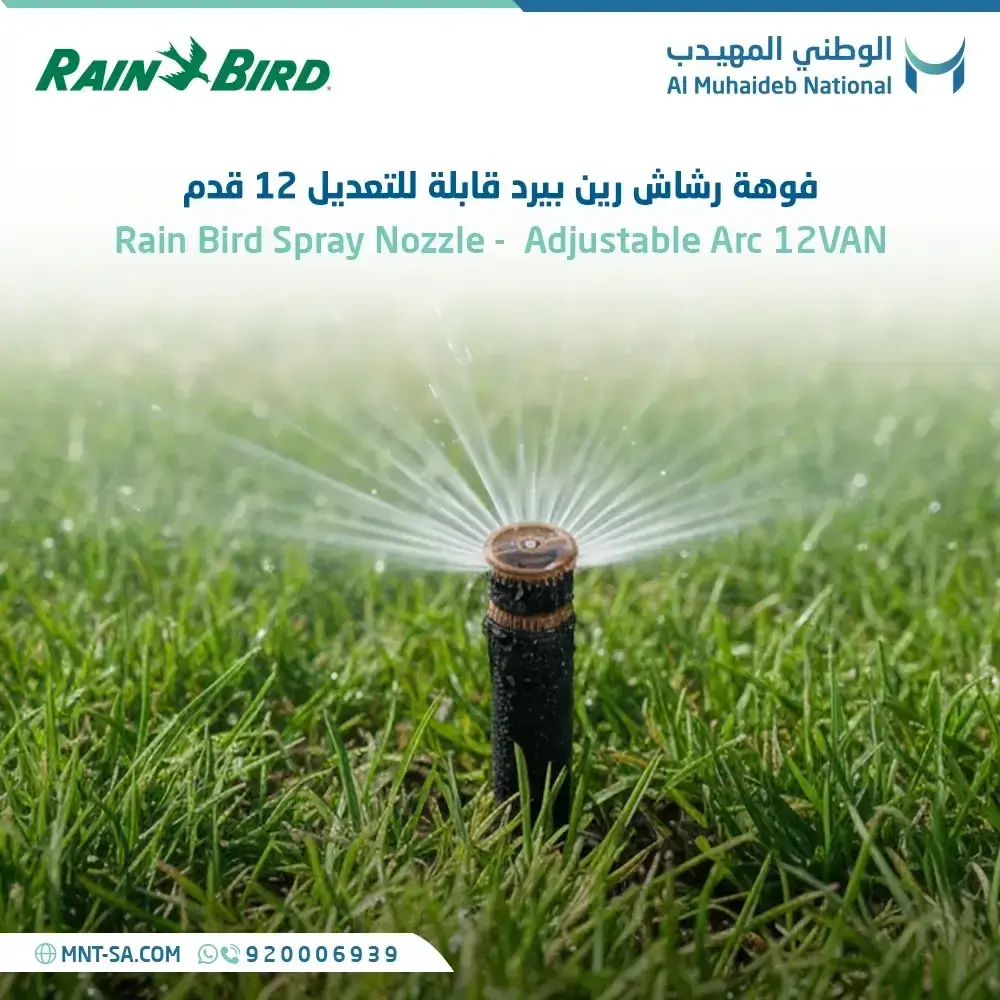

- Arc Adjustment Range: 0° to 360°
- Operating Pressure Range: 15–30 psi (1.0–2.1 bar)
- Optimum Operating Pressure: 30 psi (2.1 bar)
- Adjustment Screw Material: Stainless steel
- Filter: Blue mesh screen 0.02" × 0.02"
- Compatibility: All Rain Bird sprinklers and shrub adapters
- Precipitation Rate: Matched with Rain Bird MPR nozzles
- Dimensions: 2.24 × 2.24 × 5.46 cm
- Weight: 0.69 grams
- Color: Beige
- Sales Unit: Multiples of 25 units
Rain Bird 12VAN Quality Certifications and Compliance
- Official Rain Bird certified product
- Matched Precipitation Rates with Rain Bird MPR nozzle series
- Compatible with professional irrigation system standards
- Exclusive authorized dealer in Saudi Arabia: Al Watani Al Muhadeb
Rain Bird 12VAN Adjustable Arc Spray Nozzle Features
12-Foot Radius — The Bridge Position in Multi-Radius System Design
The Rain Bird 12VAN occupies the coverage position between 10 and 15 feet, reducing sprinkler count in medium zones and achieving optimal head-to-head coverage spacing.
Arc Adjustment from 0° to 360° — No Tools Required
A single twist of the center collar changes the arc instantly. No tools, no complicated steps — immediate field adjustment at any installation point.
Beige Color — Full Visual Integration with Garden Soil
The beige finish of the Rain Bird 12VAN blends naturally with soil and planting beds, minimizing the visual impact of irrigation hardware in landscaped areas.
Captured Screw Slot — Eliminates Screwdriver Slippage
The protected slot design locks the screwdriver during flow and radius adjustments, ensuring controlled, damage-free tuning every time.
Stainless Steel Adjustment Screw — Lasting Precision
Full corrosion resistance ensures the Rain Bird 12VAN maintains its calibrated output across multiple seasons without degradation.
Textured Grip — Secure in All Field Conditions
The textured base and collar provide a stable grip even with wet hands, speeding up installation and maintenance.
Blue Mesh Filter Screen — Consistent Flow Protection
The included filter screen blocks particles and maintains the set radius accurately throughout the season.
Matched Precipitation Rates — Seamless Integration
The 12VAN can be combined with any MPR or VAN series nozzle in mixed-radius zones without disrupting water distribution balance.
Rain Bird 12VAN Adjustable Arc Spray Nozzle Use Cases
Closing Coverage Gaps in Multi-Radius Irrigation Systems
The Rain Bird 12VAN provides the intermediate radius that eliminates dry spots and excessive overlap at the boundaries between 10-foot and 15-foot coverage zones.
Side Bed Irrigation Adjacent to Walls and Fences
Beds 3–4 meters wide alongside walls need a 12-foot radius specifically to cover full depth without spraying the wall or overshooting the bed boundary.
Transition Zone Coverage Between Adjacent Green Areas
At the edge of turf zones that meet sidewalks or pathways, the 12VAN delivers precise boundary coverage without encroaching on adjacent hard surfaces.
Side Garden Strips in Villa Landscapes
Medium-width side gardens (3–4 meters) in Saudi villa landscapes are the ideal application for the Rain Bird 12VAN, delivering complete coverage without overlap onto adjacent structures.
Individual Sprinkler Points in Mixed-Zone Systems
The 12VAN can be installed at individual positions in larger systems to cover areas that larger or smaller nozzles cannot reach with the required precision.
Supplemental Watering in Saudi Residential Gardens
Medium spaces along entry paths and between buildings and perimeter walls find precisely matched coverage in the Rain Bird 12VAN.
How to Install the Rain Bird 12VAN — Step-by-Step
Step 1 — Shut off water supply. Step 2 — Remove existing nozzle, clean seat. Step 3 — Install blue mesh filter screen. Step 4 — Thread in Rain Bird 12VAN clockwise until secure. Step 5 — Orient left edge indicator toward left boundary of zone. Step 6 — Adjust arc collar to required angle. Step 7 — Use screwdriver in captured slot to set flow and radius. Step 8 — Open water supply and verify spray pattern.
Tips for Best Performance from the Rain Bird 12VAN
- Operate at 30 psi for optimal 12VAN distribution and radius accuracy.
- Clean the blue filter screen at the start of each season.
- Use 12VAN at intermediate positions between 10-foot and 15-foot zones for gap-free coverage design.
- Verify head-to-head spacing after installation for uniform soil moisture.
How to Order the Rain Bird 12VAN Adjustable Arc Spray Nozzle
- Sold in multiples of 25 units — confirm quantity is a multiple of 25.
- Add to cart directly from this page.
- Select payment method and complete the order.
- Confirmation and tracking number sent immediately after order placement.
Important Notes Before Using the Rain Bird 12VAN
- Sold in multiples of 25 units only.
- Install the included blue mesh filter screen before activation.
- Do not exceed 30 psi operating pressure.
- Adjust arc collar by hand only — no force tools.
Why the Rain Bird 12VAN Is Worth the Investment
Solves the Coverage Gap Problem — Eliminates the need to compromise between oversized and undersized radius options in medium zones. Beige Finish — Most visually discreet in soil and planted bed environments. System Design Flexibility — Adds a critical intermediate radius to your nozzle toolkit without additional system cost. Uniform Mixed-Zone Performance — Matched precipitation rates ensure consistent results alongside any MPR or VAN nozzle.
Why Buy Your Spray Nozzle from Al Watani Al Muhadeb?
- Exclusive authorized Rain Bird dealer in Saudi Arabia.
- 100% genuine Rain Bird products with official warranty.
- Expert irrigation systems technical support team.
- Fast delivery to all regions of the Kingdom.
- Competitive pricing as official authorized dealer.
Start Building a More Precise Irrigation System with the Rain Bird 12VAN Today
Order now from Al Watani Al Muhadeb. Add to Cart Now and Get Fast Delivery to Your Door.
Frequently Asked Questions — Rain Bird 12VAN Adjustable Arc Spray Nozzle
In a system combining 10VAN and 15VAN nozzles, where exactly should the 12VAN be installed?
The 12VAN is installed at positions where the sprinkler is 11–13 feet from the farthest zone boundary — the distance that makes 10 feet insufficient and 15 feet excessive. The most common scenario: the corner between a 15VAN-covered zone and a 10VAN-covered zone, where the corner creates a coverage gap that a single 12VAN resolves.
The 12VAN's beige color is difficult to spot in the field — how should this be managed?
Beige is the hardest color to identify in the VAN series, especially against dark soil. The practical solution: document 12VAN positions with high precision in the system layout and attach a temporary colored marker (reflective tape or a colored stake) at each 12VAN position during the first irrigation season for rapid field identification.
When is replacing a 12VAN with a fixed-arc MPR nozzle the right decision?
Replacement with a fixed MPR is appropriate when: the zone has stable, unchanging boundaries, its shape matches a standard MPR arc option (90°, 180°, 270°, 360°), and no future changes to the garden layout are anticipated. If any of these conditions is not met, retaining the 12VAN's adjustability is the better long-term choice.
What is the most common design mistake when adding a 12VAN to an existing system?
Failing to recalculate the spacing of adjacent nozzles after adding the 12VAN. The common error: inserting a 12VAN in the middle of a 15VAN-covered zone without verifying that the combined precipitation rate does not over-saturate the soil. Every new nozzle addition requires a review of the total precipitation rate for the affected zone.
