Rain Bird 10VAN Adjustable Arc Spray Nozzle — The Gold Standard Radius for Saudi Residential Gardens
Most residential gardens in Saudi Arabia — front lawns, internal courtyards, entry planting areas, and beds around buildings — fall within the coverage range that the Rain Bird 10VAN serves best. A 10-foot radius (approximately 3 meters) is the spacing that balances comprehensive coverage with water efficiency in the majority of urban residential garden layouts.
The Rain Bird 10VAN delivers this controlled coverage with full arc flexibility from 0° to 360°, stainless steel flow and radius adjustment, and seamless integration with Rain Bird MPR nozzles and all VAN series models in mixed-zone irrigation systems.
The professional standard for Saudi residential irrigation. Order now.
Rain Bird 10VAN Adjustable Arc Spray Nozzle Technical Specifications
- Model: 10VAN
- Brand: Rain Bird — Exclusive Authorized Dealer: Al Watani Al Muhadeb
- Series: VAN — Variable Arc Nozzle
- Spray Pattern: Adjustable arc — Variable Arc
- Coverage Radius: 10 ft (approximately 3 m)
- Arc Adjustment Range: 0° to 360°
- Operating Pressure Range: 15–30 psi (1.0–2.1 bar)
- Optimum Operating Pressure: 30 psi (2.1 bar)
- Adjustment Screw Material: Stainless steel — corrosion resistant
- Filter: Blue mesh screen 0.02" × 0.02" — prevents clogging and maintains radius accuracy
- Compatibility: All Rain Bird sprinklers and shrub adapters
- Precipitation Rate: Matched with Rain Bird MPR nozzles
- Dimensions: 2.24 × 2.24 × 5.46 cm
- Weight: 0.69 grams
- Color: Blue
- Sales Unit: Multiples of 25 units
Rain Bird 10VAN Quality Certifications and Compliance
- Official Rain Bird certified product
- Matched Precipitation Rates (MPR) with Rain Bird MPR nozzle series
- Compatible with professional irrigation system standards
- Exclusive authorized dealer in Saudi Arabia: Al Watani Al Muhadeb
Rain Bird 10VAN Adjustable Arc Spray Nozzle Features
10-Foot Radius — The Most Common Residential Coverage Distance in Saudi Arabia
10 feet (3 meters) is the most frequently specified radius in Saudi residential garden irrigation design. The Rain Bird 10VAN delivers this range with optimal sprinkler spacing that achieves complete zone coverage using the minimum number of irrigation points — reducing system cost while maintaining uniform soil moisture.
Blue Color Code — Instant Identification in Mixed-Nozzle Systems
The blue body of the Rain Bird 10VAN enables immediate identification during maintenance and inspection in multi-nozzle installations that include various radius models. Locating 10VAN positions takes seconds — a practical time-saving advantage in any regular maintenance program.

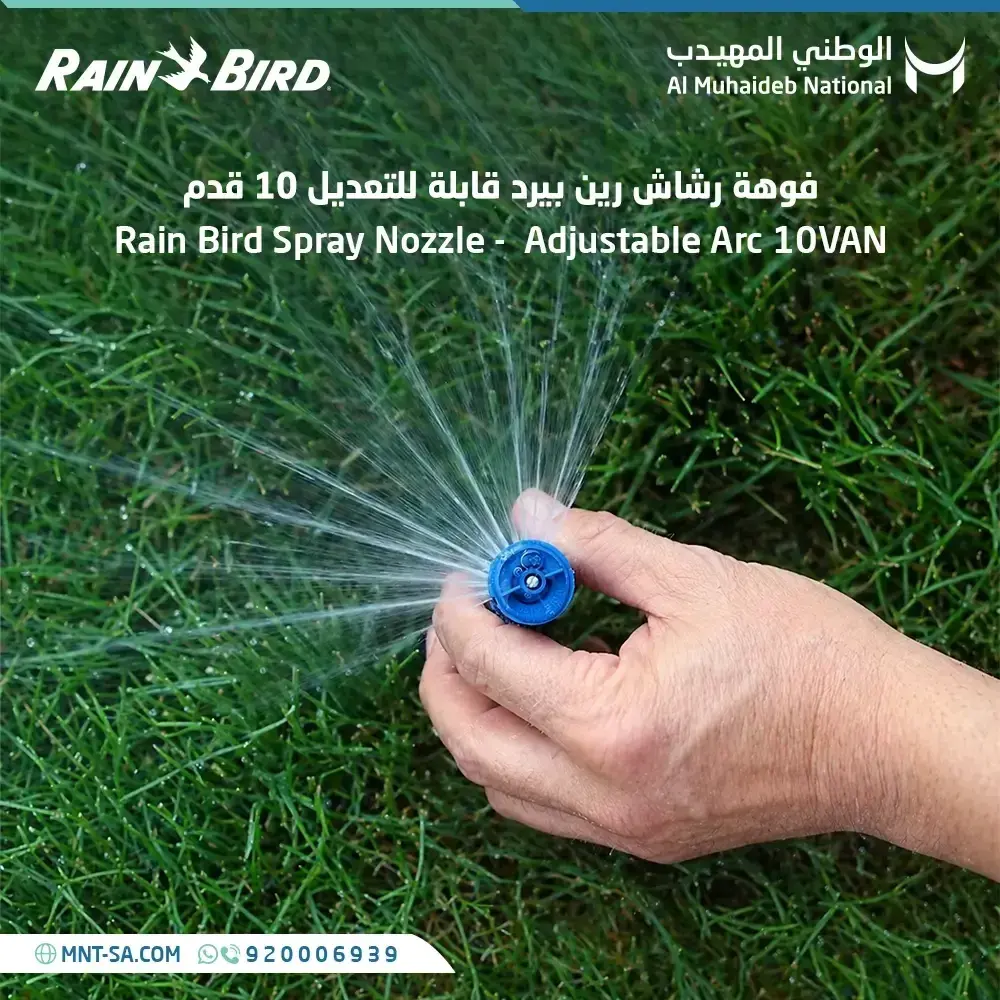

Arc Adjustment from 0° to 360° — No Tools Required
A single twist of the center collar on the 10VAN changes the spray arc from zero to a full circle. No additional tools, no complicated steps — immediate field adjustment at any installation point in the system.
Textured Base and Collar — Secure Grip in All Field Conditions
The textured surface on the base and collar of the Rain Bird 10VAN Adjustable Arc Spray Nozzle provides a confident grip even with wet hands or gloves, reducing installation time and preventing slippage during regular field adjustments.

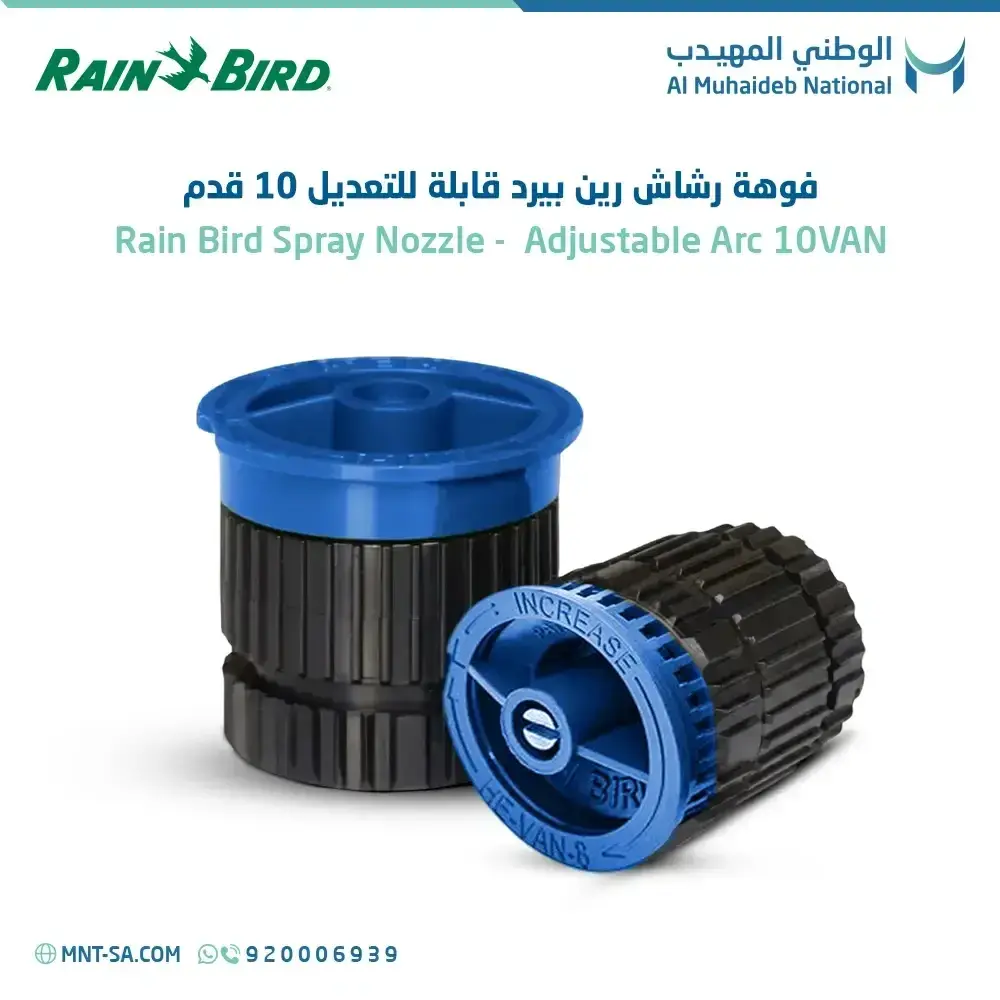

Captured Screw Slot — Precise Adjustment Without Surface Damage
The protected screw slot design on the 10VAN holds the screwdriver securely during flow and radius adjustments, ensuring controlled and damage-free tuning every time without compromising the nozzle body.
Stainless Steel Adjustment Screw — Season-After-Season Precision
The stainless steel screw in the Rain Bird 10VAN allows precise adjustment of both flow rate and spray radius with complete corrosion resistance for consistent, calibrated performance across multiple outdoor irrigation seasons.

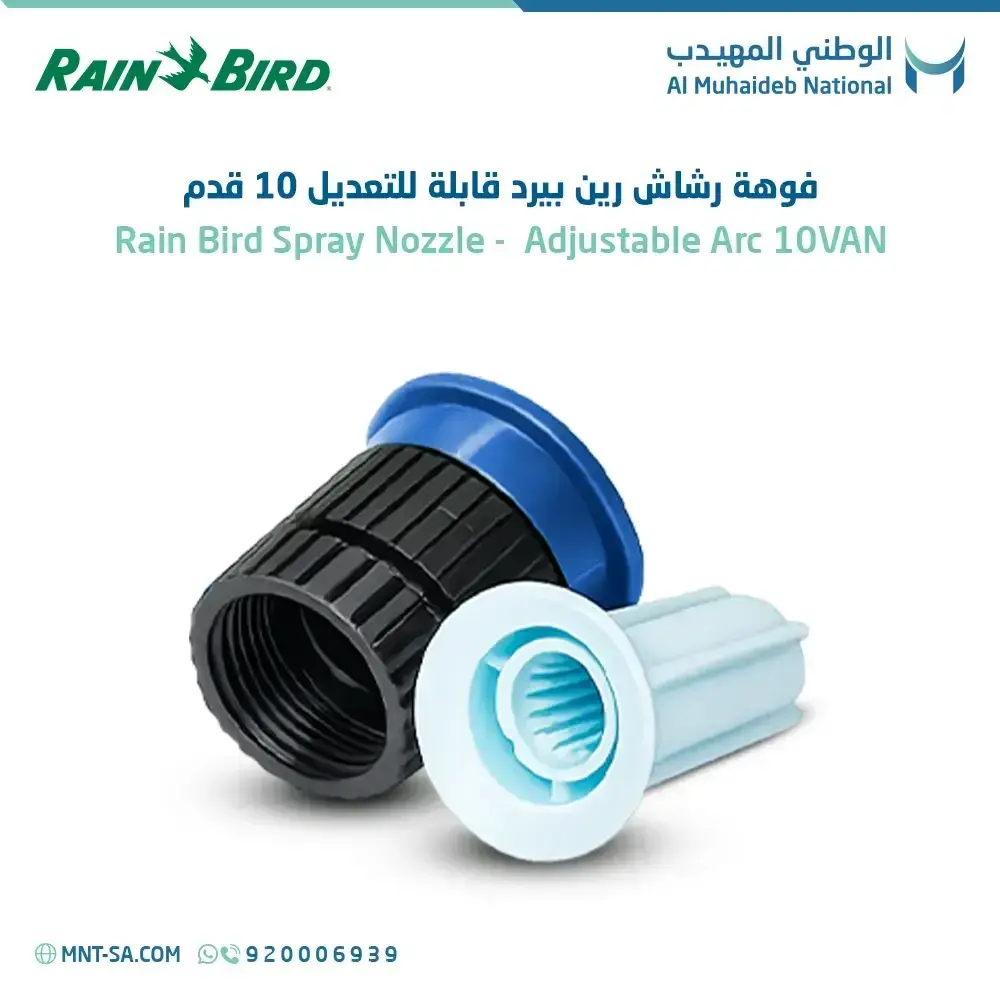

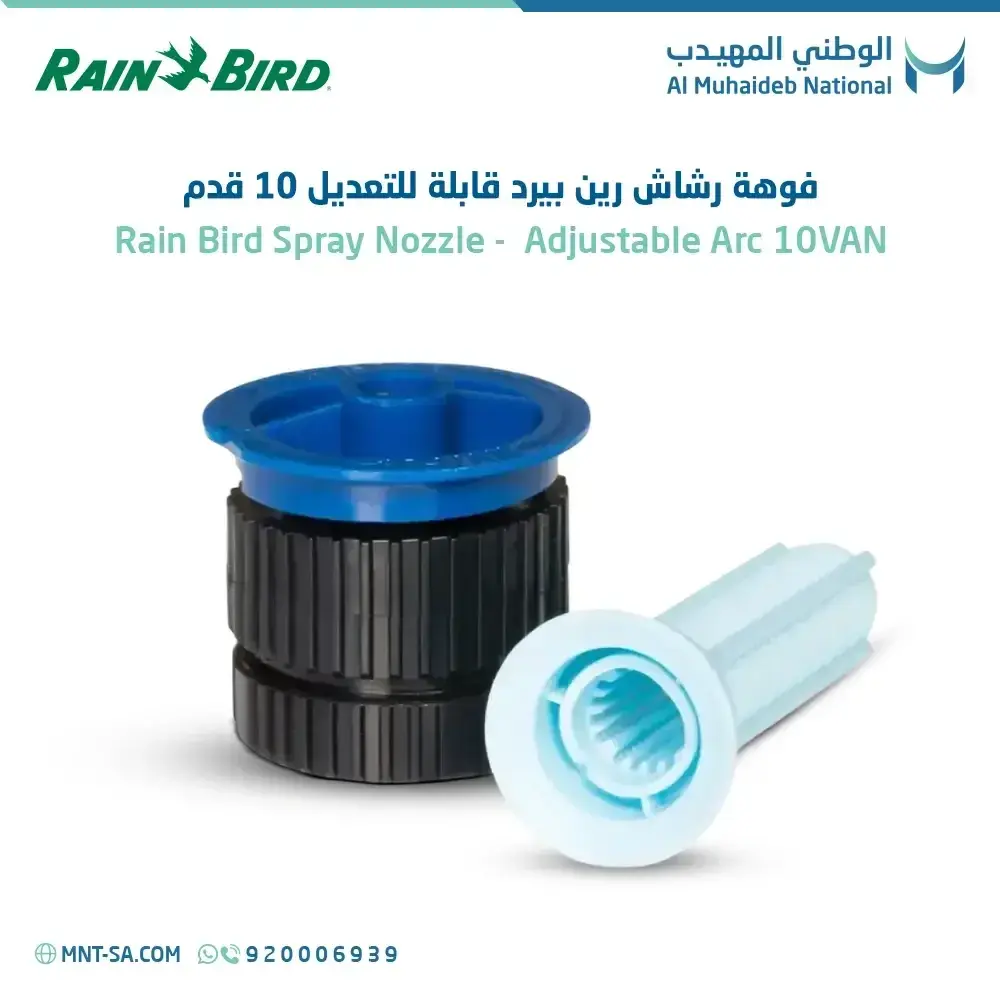

Blue Mesh Filter Screen — Preventive Protection for Consistent Performance
The included blue filter screen (0.02" × 0.02") in the 10VAN blocks fine particles and prevents nozzle clogging, ensuring the calibrated spray radius is maintained accurately throughout the full irrigation season without performance interruptions.
Matched Precipitation Rates — Professional Integration with Any System
The Rain Bird 10VAN is engineered with matched precipitation rates aligned with the MPR nozzle series and all VAN models, enabling mixed-radius irrigation zone designs with uniform water distribution across the entire coverage area.
Universal Compatibility with All Rain Bird Sprinklers and Shrub Adapters
The 10VAN is compatible with all Rain Bird Pop-up sprinklers and shrub adapters, functioning as a direct drop-in replacement for any existing nozzle position without modifications to the sprinkler head or underground infrastructure.
Rain Bird 10VAN Adjustable Arc Spray Nozzle Use Cases
Front Lawn Irrigation in Saudi Villas and Residences
The 10-foot radius delivers efficient coverage across typical Saudi front garden dimensions with optimal sprinkler spacing. This is the most common application for the Rain Bird 10VAN in Saudi residential projects and the reason it has become the default specification for irrigation designers and contractors across the Kingdom.
Internal Courtyard Gardens in Villas and Residential Compounds
Internal gardens enclosed by walls and buildings on all sides find the right coverage dimension in the Rain Bird 10VAN — complete coverage without overshooting the enclosing perimeter structures.
Entry Path Planting Beds
The typical distance between the entry path centerline and the building face in Saudi villas ranges from 2.5 to 3.5 meters — a zone that the Rain Bird 10VAN serves precisely without wetting the building facade or the path surface.
Outdoor Sitting Area Perimeter Planting
Green areas adjacent to outdoor seating zones require coverage that reaches the landscape without extending into the seating area. The 10VAN with the correct arc setting achieves this balance between complete irrigation and protection of human-use zones.
Shared-Space Coverage in Residential Compounds
In residential compound projects with repeating unit layouts, the Rain Bird 10VAN forms the backbone of shared-space coverage for medium zones — delivering consistent performance across all units with the minimum sprinkler count.
Boundary Gap Fill at Large-Nozzle Zone Edges
At the outer boundaries of irrigation zones covered by 12 or 15-foot nozzles, the Rain Bird 10VAN fills edge gaps precisely without the need for a full additional sprinkler position.
How to Install the Rain Bird 10VAN Adjustable Arc Spray Nozzle — Step-by-Step
Step 1 — Shut Off the Water Supply Deactivate the irrigation controller or close the main water valve before beginning installation of the Rain Bird 10VAN.
Step 2 — Remove the Existing Nozzle Unscrew the current nozzle counter-clockwise. Clean the nozzle seat of mineral deposits or debris before proceeding.
Step 3 — Install the Blue Mesh Filter Screen Confirm the included blue filter screen is properly seated in the nozzle mount before installing the Rain Bird 10VAN.
Step 4 — Thread in the Rain Bird 10VAN Rotate the 10VAN clockwise into the sprinkler body until secure. Avoid overtightening to prevent thread damage.
Step 5 — Set the Fixed Left Edge Direction Orient the Rain Bird 10VAN so that the left edge indicator faces the left boundary of the target irrigation area.
Step 6 — Adjust the Arc Setting Twist the center collar of the 10VAN to reach the desired spray arc between 0° and 360°.
Step 7 — Adjust Flow and Radius Using a screwdriver in the captured screw slot on top of the Rain Bird 10VAN, turn the stainless steel screw to fine-tune the flow rate and spray radius to the required output for the specific zone.
Step 8 — Restore Water Supply and Verify Performance Open the water source slowly and observe the 10VAN spray pattern. Confirm full coverage of the target area without boundary overspray. Adjust as needed.
Tips for Best Performance from the Rain Bird 10VAN Adjustable Arc Spray Nozzle
- Operate the system at the optimum pressure of 30 psi to achieve the Rain Bird 10VAN's best water distribution pattern and most consistent radius output.
- Clean the blue mesh filter screen in the 10VAN at the start of each irrigation season to prevent sediment accumulation from reducing flow.
- Document the locations of Rain Bird 10VAN nozzles in your system layout map — the blue color enables fast identification, and a documented map makes future maintenance faster and more systematic.
- When installing 10VAN nozzles in zones that also include MPR fixed-arc nozzles, confirm radius settings match for uniform soil moisture across the entire zone.
- Review the arc setting of each 10VAN following any changes to the landscape design or the addition of new elements that alter irrigation zone boundaries.
- Tighten the 10VAN connection by hand only — avoid tool overtightening to preserve the plastic thread and enable easy removal during future maintenance.
- Store spare Rain Bird 10VAN nozzles away from direct high heat to preserve the blue plastic components and filter screen condition.
How to Order the Rain Bird 10VAN Adjustable Arc Spray Nozzle
- The Rain Bird 10VAN is sold in multiples of 25 units — confirm your order quantity is a multiple of 25 before placing the order.
- Add the Rain Bird 10VAN Adjustable Arc Spray Nozzle to your cart directly from this page.
- Select your preferred payment method: credit card, bank transfer, or cash on delivery (availability varies by region).
- Enter your delivery address and complete the order.
- A confirmation with a shipment tracking number will be sent immediately after the 10VAN order is placed.
- For institutional purchasing or large project quantities, contact the sales team directly.
Order the Rain Bird 10VAN Adjustable Arc Spray Nozzle now and receive your order at your door within the specified delivery window.
Important Notes Before Using the Rain Bird 10VAN Adjustable Arc Spray Nozzle
- The Rain Bird 10VAN is sold in multiples of 25 units only — ensure the order quantity is a correct multiple of 25 before completing the purchase.
- The blue mesh filter screen is included with the 10VAN — installing it before system activation is required to ensure optimal nozzle performance.
- Operating pressure for the Rain Bird 10VAN must not exceed 30 psi — excess pressure distorts the spray pattern and compromises radius accuracy.
- Avoid installing the 10VAN in non-Rain Bird sprinkler bodies without first confirming nozzle seat dimension compatibility.
- Always adjust the arc collar on the Rain Bird 10VAN by hand — never apply force tools to preserve the internal adjustment mechanism.
Shipping and Delivery — Al Watani Al Muhadeb
- Fast delivery of Rain Bird 10VAN nozzles to all regions of the Kingdom of Saudi Arabia.
- Standard delivery time: 2–5 business days depending on destination region.
- Secure packaging ensures Rain Bird 10VAN nozzles arrive in perfect condition.
- Track your shipment via the tracking number provided after order confirmation.
- For inquiries about an existing order, contact customer service during official business hours.
Why the Rain Bird 10VAN Adjustable Arc Spray Nozzle Is Worth the Investment
The Most Frequently Used Residential Radius A 10-foot coverage range matches the typical dimensions of Saudi urban residential garden spaces — meaning the Rain Bird 10VAN will be the primary nozzle in any residential irrigation system.
Blue Color Code — Faster Maintenance, Lower Operating Cost Instant visual identification of 10VAN positions during maintenance reduces inspection time and lowers the ongoing operational cost of any irrigation system that includes this nozzle.
Economical Sprinkler Spacing The right radius reduces the total sprinkler count needed for complete zone coverage while achieving ideal head-to-head spacing for uniform soil moisture.
Uniform Mixed-Zone Performance Matched precipitation rates ensure consistent distribution results with any Rain Bird MPR or VAN nozzle combination in the same zone.
Full System Compatibility Protects Existing Investment The Rain Bird 10VAN works with your complete existing Rain Bird infrastructure — no sprinkler head replacements, no underground modifications required.
Proven Durability in Saudi Outdoor Conditions Stainless steel adjustment screw and high-quality plastic construction ensure consistent performance through Saudi Arabia's summer heat and continuous outdoor irrigation cycles.
Why Buy Your Spray Nozzle from Al Watani Al Muhadeb?
- Exclusive authorized Rain Bird dealer in the Kingdom of Saudi Arabia (retail sales).
- 100% genuine Rain Bird products with official warranty coverage.
- Specialized technical support from an expert irrigation systems team.
- Fast delivery to all regions of the Kingdom.
- Consistent stock of all Rain Bird products and accessories.
- Competitive pricing guaranteed through authorized dealer status.
- Customer service available during business hours for all Rain Bird 10VAN and irrigation system inquiries.
Start More Precise Watering with the Rain Bird 10VAN Adjustable Arc Spray Nozzle Today
The Rain Bird 10VAN Adjustable Arc Spray Nozzle brings together the most common residential coverage radius in Saudi Arabia, full arc flexibility, and color-coded system identification in a single professional-grade nozzle. A 10-foot calibrated radius with complete adjustability — the standard that irrigation professionals specify most for Saudi residential applications.
Order now from Al Watani Al Muhadeb, the exclusive authorized Rain Bird dealer in Saudi Arabia, and receive your Rain Bird 10VAN nozzles quickly and securely.
Add to Cart Now and Get Fast Delivery to Your Door.
Frequently Asked Questions — Rain Bird 10VAN Adjustable Arc Spray Nozzle
Is it better to build an entire residential garden system on 10VAN nozzles or use a combination?
For regularly shaped gardens, building the system entirely on 10VAN simplifies maintenance and ensures uniform precipitation rates. For irregular layouts with acute corners and narrow edges, combining 10VAN for primary zones with 12VAN in wider areas and 8VAN along side strips delivers higher efficiency without significant cost increase.
Why is blue specifically assigned to the 10VAN rather than another radius?
The 10VAN is the most frequently installed nozzle in Saudi residential irrigation systems. Assigning the blue color code to the most common nozzle in the field means that instant identification applies to the element encountered most often during maintenance — a design decision that cumulatively reduces maintenance time across hundreds of installations.
Does a temporary pressure drop affect 10VAN coverage during maintenance work?
When pressure drops below 20 psi temporarily, the 10VAN radius contracts without any change to the programmed run time, creating temporary dry spots. Coverage returns to normal as soon as pressure is restored after maintenance. A permanent effect occurs only if system pressure remains below 15 psi after maintenance is complete.
When is a fixed-arc 10-foot MPR nozzle preferable to the 10VAN at the same position?
A fixed MPR is preferable when the zone has a defined, stable shape matching a standard MPR arc (quarter, half, three-quarter, or full circle) and no future boundary changes are expected. The 10VAN is preferable at any position that may require arc adjustment over time or where the required angle does not match an available standard MPR arc option.
How long does complete 10VAN field calibration take at first installation under normal conditions?
A complete 10VAN installation — removing the old nozzle, inspecting the seat, installing the filter, setting arc and radius, and verifying the spray pattern — takes 3–5 minutes under normal conditions. Confined positions or elevated shrub adapter installations can extend this to 10 minutes.
